INCH-POUND
MS9886A
22 May 2013
SUPERSEDING MS9886
3 March 1969
DETAILED SPECIFICATION SHEET
BOLT, MACHINE - DOUBLE HEXAGON EXTENDED WASHER HEAD, AMS 5616, .250-2B UNJF-3A
INACTIVE FOR NEW DESIGN AFTER 18 NOVEMBER 1999.
This specification sheet is approved for all Departments and Agencies of the Department of Defense.
The requirements for acquiring the described herein shall consist of this specification sheet and procurement specification SAE AS7470.

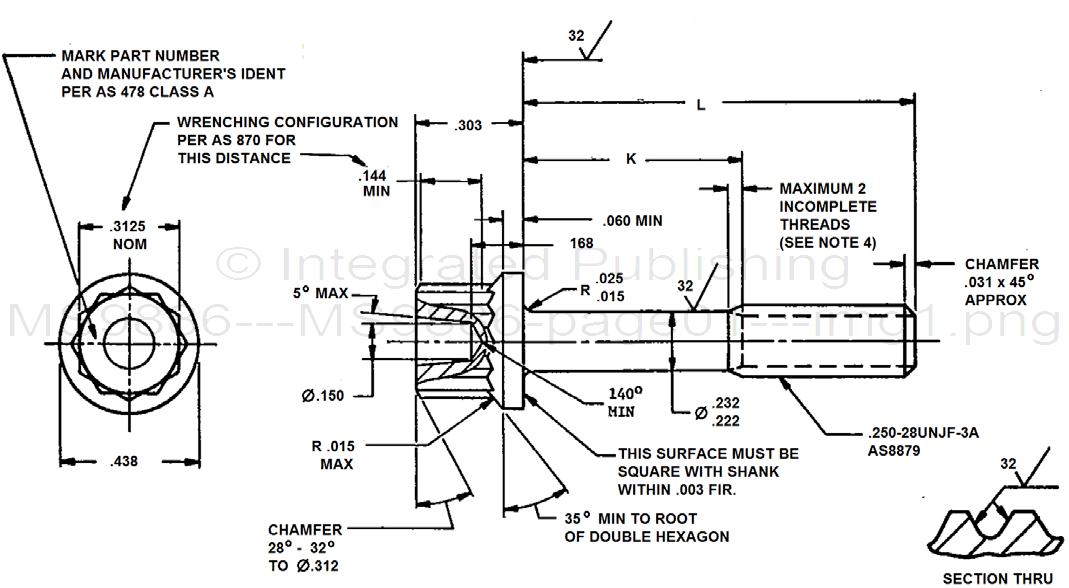

FIGURE 1. BOLT, MACHINE.
AMSC N/A FSC 5306
